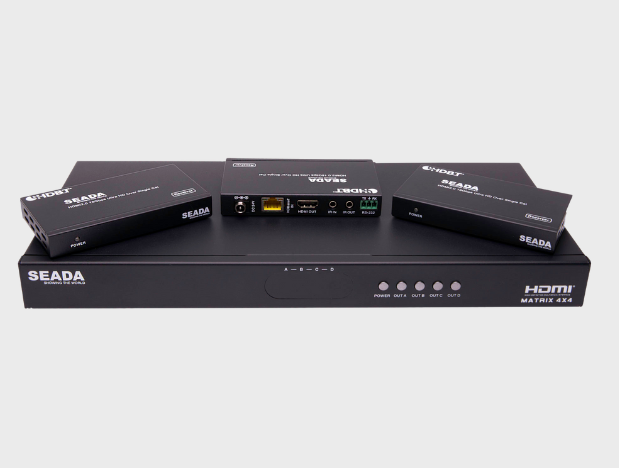

MS-HBT44B70 4×4 HDMI 18Gbps Over HDBaseT Matrix

MS-HBT44B70

The 4×4 HDBaseT Matrix supports the transmission of video (up to 4K2K@60Hz, 18Gbps, HDCP 2.2) and multi-channel digital audio from 4 HDMI sources to 3 HDBaseT-Lite outputs and 1 independent HDMI 2.0 output.

It supports audio de-embedding from any one of 4 outputs (configurable).

Any source can be selected it via on-panel button, IR remote control, RS-232, LAN or Web GUI.

Datasheet

Key Features

  • HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
  • Up to 4K2K@60Hz (4:4:4) on all HDMI and HDBaseT ports
  • Supports pass-through audio up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
  • Digital and analog audio de-embedding from any one of 4 outputs (configurable)
  • HDR and smart EDID management supported
  • 24V POC on all HDBaseT ports
  • Control is via on-panel Button, IR, RS-232, LAN and Web UI
  • Transmission distance: ※Over CAT6 cable70 meters: 1080P @60Hz36bit;40 meters: 1080P @60Hz@48bit; 1080P@120Hz@24bit;4K2K@50/60Hz (YUV420), 4K2K@50/60Hz (YUV444).
