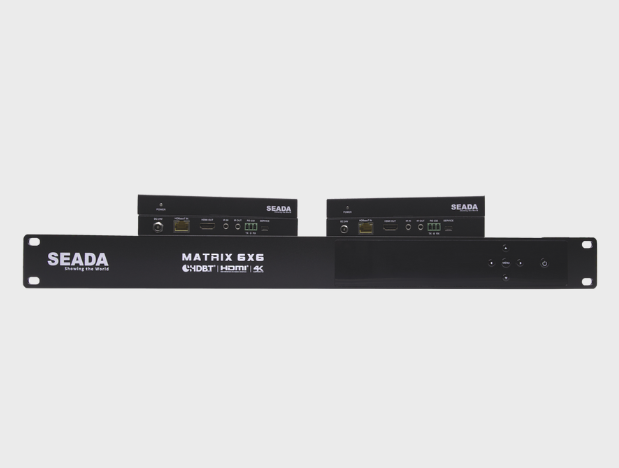

MS-HBTB66C70 6×6 18G HDBaseT Matrix Switcher

MS-HBTB66C70

The MS-HBTB66C70 HDBaseT™ Matrix Switcher Kit offers 4K HDCP 2.2 signals at both input and output ports. It can deliver HDMI video, digital/analog audio, IR, PoC and RS232 signals up to length of 70m over a single CAT cable.





Datasheet

Key Features

  • Supports HDMI 2.0b
  • Supports HDCP 2.2 and DVI Compliant
  • Supports 6 HDMI inputs
  • Supports 4 HDBaseT and 2 HDMI outputs
  • Supports PoC on all HDBaseT ports
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS X
  • Support 4K & HD signals transmission up to 40 and 70 meters via CAT5e/6/7 respectively
  • Supports audio matrix with Volume, Mute, and Audio delay adjustment for lip-sync
  • Supports HDR10, Dolby Vision, ARC, CEC and smart EDID management
  • Support RS232 pass-through onto HDBaseT receivers
  • Control is via on-panel Button, IR, RS-232, Telnet and Web GUI
  • 1U rack mounted design with aluminium front
