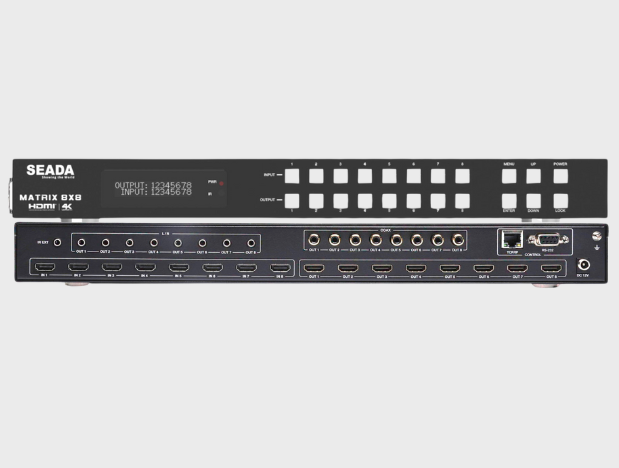

MS-HDM88 8×8 18G HDMI Matrix with ARC
MS-HDM88
The MS-HDM88 Matrix Switcher offers 4K HDCP 2.2 signals at both input and output ports. supports the transmission of and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays.
The MS-HDM88 Matrix Switcher supports both analog and coaxial de-embedded audio at 8 HDMI output ports. With HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output.
Key Features
- Supports HDMI2.0b
- Supports HDCP2.2/1.4
- Supports 8 HDMI inputs and 8 HDMI outputs
- Supports video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports
- Supports 18Gbps video bandwidth
- Supports Dolby Vision, HDR10+ and HLG
- Supports 4K->1080p downscaling on each output port
- Supports HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
- Supports audio de-embedded and output on analog and coax ports
- Supports ARC, CEC and smart EDID management are supported
- Control is via on-panel Button, IR, RS0232, LAN and Web GUI
- 1U rack mounted design with front panel OLED display
